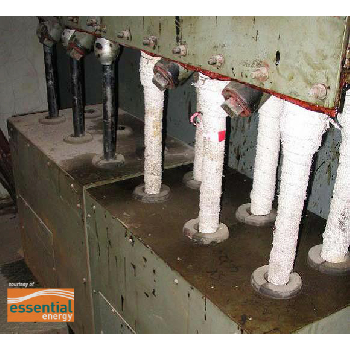

NameAsbestos bandages
CaptionAsbestos bandages
LocationPlant
SourceEssential Energy
Image Id264

Woven Insulation - Cable bandages

Product description
Cable bandages were installed as a means of fire protection on electrical cables in electrical substations, typically located in switchrooms and switchyards of Zone and Sub-transmission substations, underground and chamber distribution substations, as well as in cable basements and cable pits. Typical locations include high voltage cables at transformer, high voltage cables at switchgear, switchgear-transformer cables, and low voltage cables at feeder panels. Cable Bandages have only been found within ex Electricity Commission and Ausgrid substations. All knowncable bandages have been removed from Endeavour Energy assets. Cable bandages are usually wrapped uniformly around the cable, they are white to cream in colour, highly friable asbestos material where fibres could be freed just by touching them.
Product type Electrical Insulation
Sub-Product type
Trading name(s)
Other name(s) Cable lagging, cable insulation, rope braid, woven asbestos sheath.
Build element Electricity, supply, construction, construction services,
Product identification
White/grey woven bandage type material. Usually 50mm to 100mm in width. May be similar in appearance to bitumen impregnated cotton cable wrap which is dark black/grey in colour (non-asbestos). Commonly installed on high voltage cables (e.g. 11kV). Modern fire protection of cables is a sprayed white material that does not appear woven.
Known uses Asbestos covering on electrical cables for heat resistance
Asbestos fibre type Chrysotile (white asbestos)
Friable or Non-Friable Friable
Known Supplier(s)
Known place of manufacture
Date / period of manufacture
Building construction period 1951-1960,1961-1970,1970-1980,1981-1990
Location Commercial
  • Electrical
  • Plant
Industrial
  • Electrical
  • Plant
Plant
